Outline

• Load-Balancing Games (Ch. 20)

• Routing Games (Ch. 18)

• Formation Games (Ch.19)

• Introduction to Mechanism Design (Ch. 9)

• Mechanisms Without Money (Ch. 10)

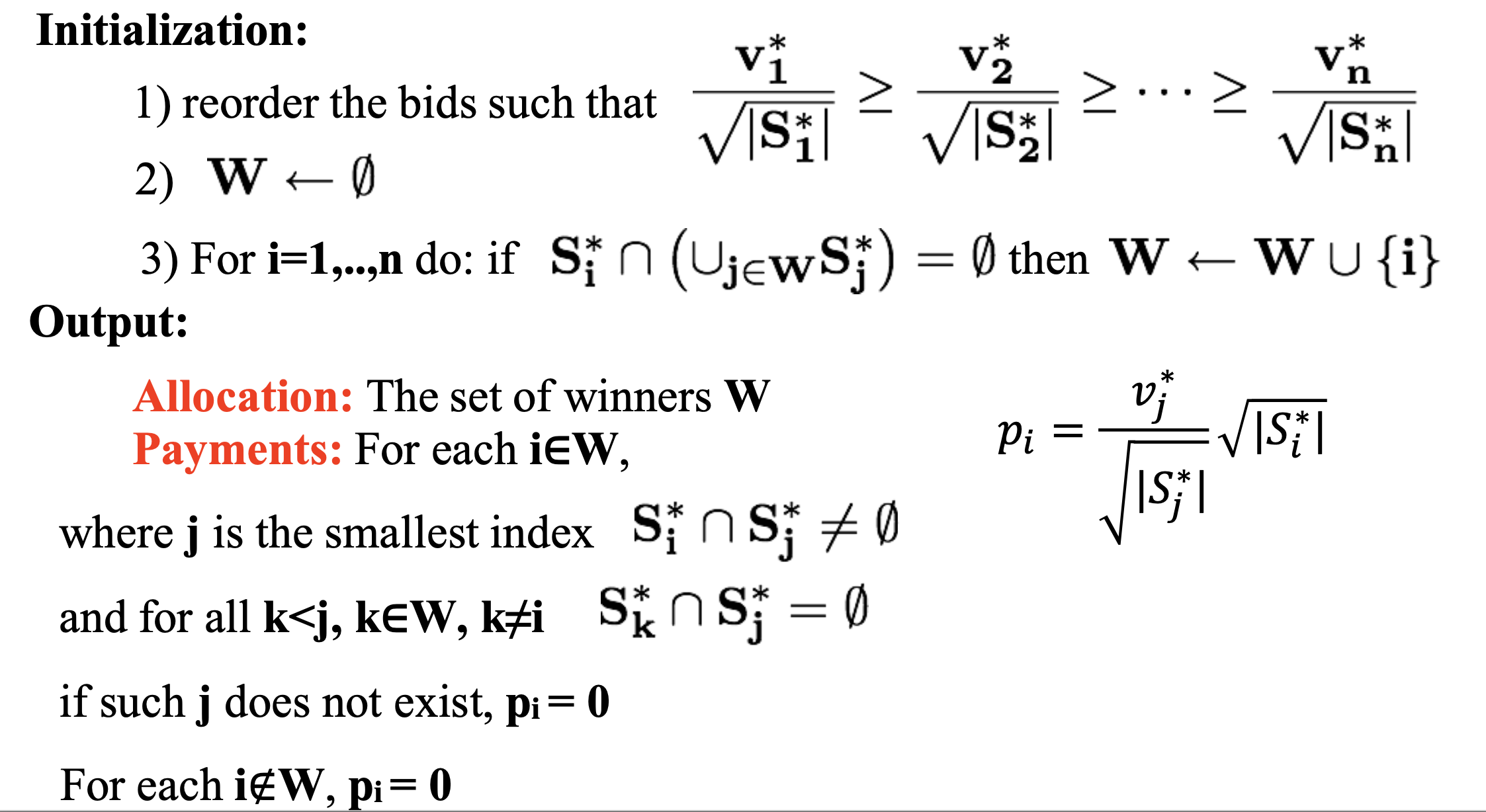

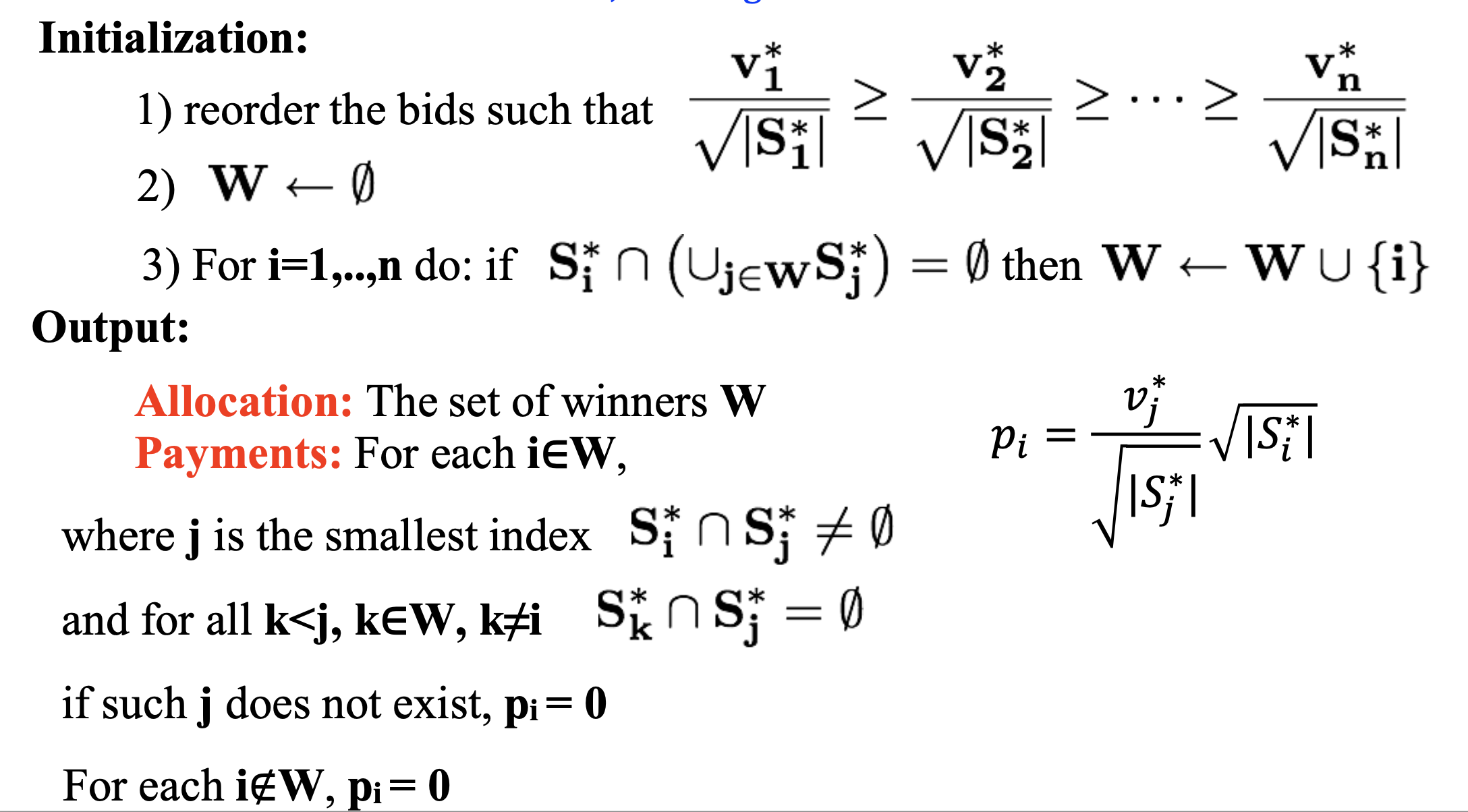

• Combinatorial Auctions (Ch. 11)

• Profit Maximization (Ch. 13)

Network Games

Bandwidth sharing game 带宽分享游戏

• Utility player i : ui(x1, … , xn) = xi · (1− Sum^n^j=1 xj)

• A strategy vector s ∈ S is a pure Nash equilibrium, if for each player i , and each alternate strategy si′ ∈ Si , we have that ui(si,s−i) ≥ ui(si′,s−i).

• A strategy vector s ∈ S is a dominant strategy solution, if for each player i , and each alternate strategy vector s′ ∈ S , we have that ui(si,s′−i) ≥ ui(si′,s′−i).

Load Balancing Games 负载平衡游戏

• Makespan scheduling on uniformly related machines：

  1. n tasks with weights w1,…,wn

  2. m parallel machines with speeds s1, … , sm

     • identical machines: s1 = s2 = ··· = sm = 1

     • uniformly related machines: else

  3. A:[n] → [m]… assignment of tasks to machines

  4. The load of machine j∈[m] under the assignment A is:

     • lj= sum wi / sj

  5. Objective: minimize the makespan, aka the maximum load overall machines

• Pure Nash equilibrium

  • An assignment A is a pure Nash equilibrium if for all players i ∈ [n] and all machines j ∈ [m]:

    lA(i) ≤ lj + wi / sj

• Computing pure Nash equilibria

  • LPT (important!): The Largest Processing Time (LPT) scheduling algorithm computes a pure Nash equilibrium in polynomial time.

  • LPT algorithm

    1. Start with empty assignment: lj := 0 for all j ∈ [m]

    2. Sort task in non-increasing order w1 ≥ w2 ≥ ··· ≥ wn

    3. For i from 1 to n do

       • A(i) := arg min j∈[m] { lj + wi }

       • lA(i) := lA(i) + (wi / sj)

       • return A

  • Every instance of the load balancing game admits a pure Nash equilibrium.

• Improvement step: change to best response

  • Single player moves his task to the machine that minimizes his cost.

  • Theorem 2.3: For every instance of the load balancing game with related machines every best response sequence terminates.

  • Theorem 2.4: For identical machines the length of any sequence of best responses is at most 2^n.

  • Theorem 2.5: Let A : [n] 7→ [m] denote any assignment of n tasks to m identical machines. Starting from A, the max-weight best response policy reaches a pure Nash equilibrium after each agent was activated at most once.

  • Lemma 2.6: Suppose task i makes a best response: For all tasks j with wj ≥ wi, if j was satisfied before, it remains satisfied after i’s best response.

• PoA (Price of Anarchy): The worst case ratio between the social cost in some Nash equilibrium (NE) and the optimum social cost.

  PoA = max (cost(P) / opt(G))

• Upper bound α: show that for all such instances and all such equilibria the PoA is at most α.

• Lower bound α: find such an instance and such an equilibrium where the PoA is at least α.

Congestion Games (拥堵游戏)

• Wardrop Model

  • Given a directed graph G = (V,E)

  • k commodities, one for each i ∈ [k]

    1. si , ti … source-sink pair

    2. ri … flow demanPd to route from si to ti

    3. normalise: r = sum^i∈[k] ri = 1

    4. Pi … set of paths between si and ti

  • P = ∪i∈[k] Pi

  • ce : [0,1] 7 → R … latency (cost) function of edge e ∈ E

    • continuous, non-decreasing, non-negative

  • Total latency or total cost

    1. C(f) = Sum fP · cP(f) = sum fe · ce(f)

    2. ce = edge latency / cost

    3. cp(f) = sum ce(f) path latency

  • Definition (Wardrop equilibrium): A feasible flow f is a Wardrop equilibrium if for every commodity i ∈ [k] and every pair P1,P2 ∈ Pi with fP1 > 0, we have:

    cP1(f) ≤ cP2(f)

  • Finding Wardrop Equilibrium

    1. get f: f = (f1, f2), with f1 + f2 = 1.

    2. cP1(f) = cP2(f)

  • Definition: Marginal Cost

    1. ce∗(x) = (x·ce(x))′ = ce(x) + x·ce′(x)

    2. cP∗(x)= Sum ce∗(x)

  • Lemma 3.1 (Characterisation of optimal flows): A feasible flow f is optimal if and only if for all commodities i ∈ [k], and paths P1,P2 ∈ Pi with fP1 > 0, we have cP∗ (f) ≤ cP∗ (f).

  • Theorem 3.2 (Wardrop equilibrium vs. Optimum): A feasible flow f is optimal for (G,r,c) if and only if f is a Wardrop equilibrium for (G,r,c∗).

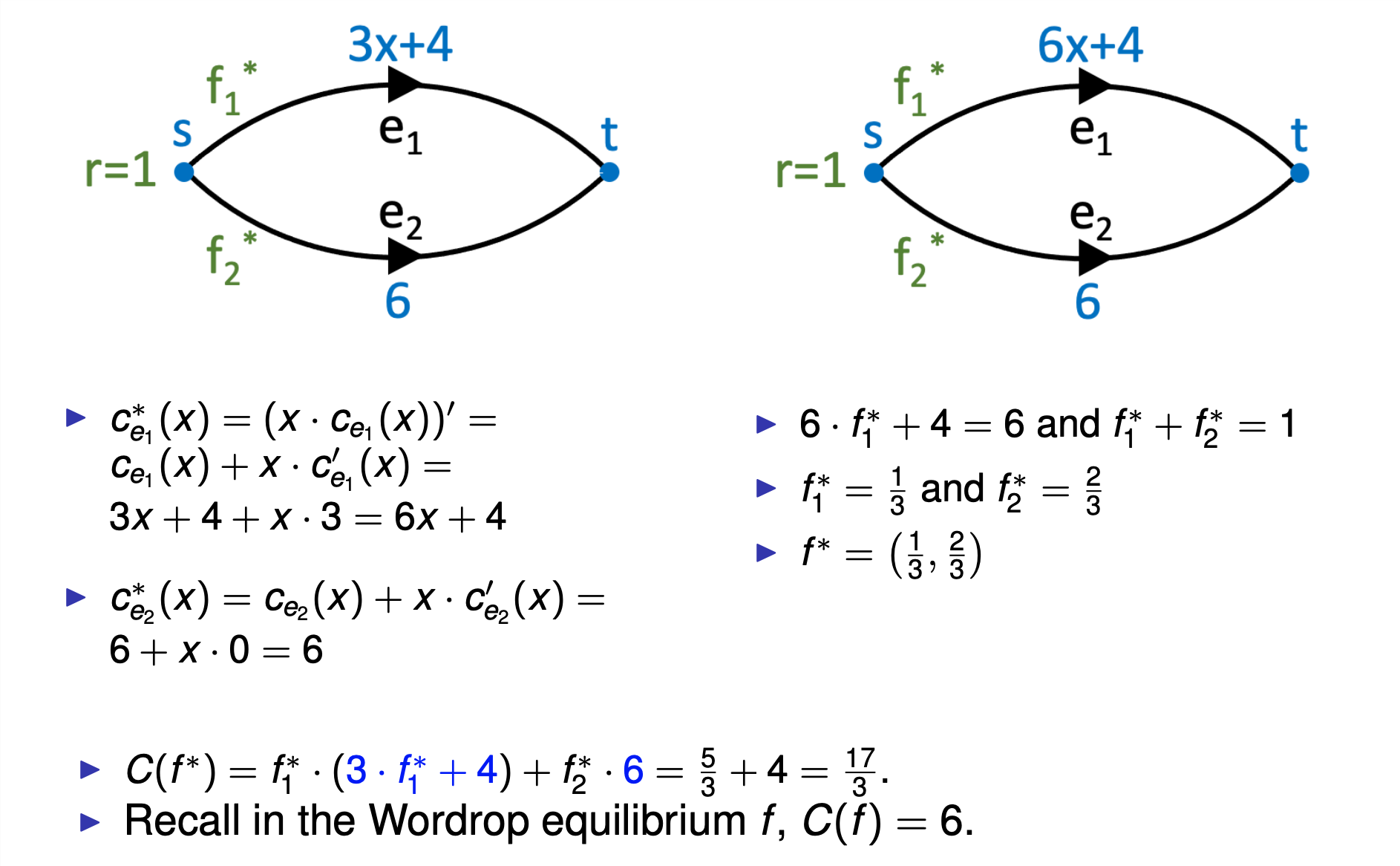

  • Finding Optimal Flow via Wardrop Equilibrium (important)



• Existence of Wardrop Equilibria

  • Theorem 3.3 (Existence and essential uniqueness)

    1. Every instance (G,r,c) admits a Wardrop equilibrium.

    2. If f and ̃f are Wardrop equilibria, then ce(f) = ce( ̃f) for every e ∈ E.

• Price of Anarchy

  • Let f be a Wardrop equilibrium and f ∗ be an optimum for (G, r , c).

  • Definition: Price of Anarchy: ρ(G,r,c)= C(f) / C(f∗)

  • Theorem 3.4 (polynomial latency functions): Suppose latency functions are of the form ce(x) = Sumi=1^d ae,i · xi with non-negative coefficients. Then ρ(G,r,c) <= d + 1

  • Theorem 3.5 (linear latency functions): Suppose latency functions are linear with non-negative slope and offset. Then, ρ(G,r,c) = 4/3.

(Weighted) congestion games

• Private Cost and Social Cost

  • Private cost of player i ∈ [k]: Ci(s)= wi · Sum ce(xe(s))

  • Social Cost: SC(s) = Sum Ci (s) = Sum xe(s) · ce(xe(s))

  • Total cost nonatomic SC(f)= Sum fe ·ce(f)

• Nash Equilibrium: A strategy profile s is a Nash equilibrium if and only if all players i ∈ [k] are satisfied, that is, Ci(s) ≤ Ci(s−i,si′) for all i ∈ [k] and si′ ∈ Si.

• Theorem 3.6: Every unweighted congestion game possesses a pure Nash equilibrium.

• Theorem 3.7: There is a weighted network congestion game that does not admit a pure Nash equilibrium.

• Theorem 3.8: Every weighted congestion game with linear latency functions possesses a pure Nash equilibrium.

• Price of Anarchy: Example

Network Formation Games

• maingoal:bounding the efficiency loss resulting from selfishness

  1. Price of Anarchy

  2. Price of Stability

• Global Connection Game

  1. DirectedG=(V,E) with non-negative edge cost ce.

  2. k players , each player i ∈ [k] has a source si and sink node ti I Astrategy for a player i is a path Pi from si to ti in G.

  3. Given a strategy profile S = (P1,…,Pk), we define the constructed network to be ∪i Pi.

  4. Players who use edge e divide the cost ce according to some cost sharing mechanism.

  5. We will consider the equal-division mechanism: costi(S) = Sum^e ∈ P ce / ke

  6. Social cost: SC(S) = Sum^Pi∈[k] costi (S) = Sum^Pe ∈ ∪iPi ce.

• Price of Anarchy

  • Social Cost (total cost of used edges): For any S = (P1,…,Pk), SC(S) = Sum^i∈[k] cost i(S) = Sum^e ∈ ∪iPi ce

  • Theorem 4.1: For any global connection game with k players, PoA ≤ k.

• Price of Stability

  • Potential Games and Price of Stability:

    All games that admit a potential function Φ,s.t. for all outcomes s, all player i, and all alternative strategies si′, Ci (si′, s−i ) − Ci (s) = Φ(si′, s−i ) − Φ(s).

    Φ(s) minimal ⇒ s is a Nash equilibrium.

  • Definition: Price of Stability:

    1. For a game G: PoS(G)= min SC(s) / OPT

    2. For a class of games G: PoS(G) = sup PoS(G)

  • Theorem 4.2: Suppose that we have a potential game with potential function Φ, and assume that for any outcome s, we have SC(s) / A ≤ Φ(s) ≤ B · SC(s), for some constants A, B ≥ 0. Then the price of stability is at most A · B.

  • Lemma 4.3: For any strategy profile S = (P1,…,Pk) we have SC(S) ≤ Φ(S) ≤ Hk · SC(S)

  • Theorem 4.4: The price of stability in the global connection game with k players is at most Hk = Θ(logk).

  • Theorem 4.5: The price of stability in the global connection game with k players is at least Hk.

Introduction to Mechanism Design

• Mechanism Design: Reverse engineering in Game Theory

Social Choice

• Majority Vote

  1. Candidates: A, B

  2. Voters: A > B, B > A, B > A

  3. Majority vote: 50%

  4. Outcome: B

• Plurality: The candidate that was placed first by the largest number of voters wins

  1. Candidates: A, B, C, D

  2. Voters: A >1 B >1 C >1 D, A >2 B >2 C >2 D, D >3 A >3 B >3 C, B >4 C >4 A >4 D, C >5 A >5 B >5 D

  3. Outcome: A

• Borda count: Each candidate gets n-i points for every voter who ranked him in place i.

  1. Candidates: A, B, C, D

  2. Voters: A >1 B >1 C >1 D, A >2 B >2 C >2 D, B >3 A >3 D >3 C, B >4 C >4 A >4 D, C >5 B >5 D >5 A

  3. A: 9, B: 12, C: 7, D: 2

  4. The winner is B

• Strategic Voting

  1. We would like to avoid voting rules where strategic voting is encouraged

     • It is not transparent

     • the interaction of strategic voters is complex

  2. Definitions

     • A function F: Ln => L is called social welfare function

     • A function f: Ln => A is called social choice function

     • A: Finite set of alternatives A={a,b,c,…}

Properties of social welfare functions

• Pareto Efficiency: whenever an alternative a is ranked above b according to each Li, then a is ranked above b in F(L1,…,LN)

• Independent of Irrelevant Alternatives (IIA):

  1. whenever the ranking of a versus b is unchanged for each i=1,…,N when individual i’s ranking changes from Li to L’i,

  then the ranking of a versus b is the same according to both F(L1,…,LN) and F(L’1,…,L’N)

• Dictatorial: If there is an individual i such that F(L1,…,LN)=Li

• Theorem: If |A|≥3 and F satisfies Pareto Efficiency and IIA, then F is a dictatorial social welfare function.

Properties of social choice functions

• Definitions:

  1. The social choice function f can be strategically manipulated by some player i, if for some ranking profile L=(L1,…,LN), and for some L’i, we have f(L’i,L-i) ≠ f(L) and f(L’i,L-i) > i f(L)

• Monotonic: if f(L1,…,LN)=a and for every individual i and every alternative b the ranking L’i ranks a above b if Li does, then f(L’1,…,L’N)=a

• Onto(满射): For any alternative a 2 A there exists a profile ranking such that f(L)=a.

Mechanisms with Money

Single Item Auction

• Description: Strategy Set: The players bid bi (probably ≠ vi)

• Goal: Give the object to the player with maximum value.

• Can it be strategically manipulated? YES

First Price Auction

• Can it be strategically manipulated? YES

Vickrey Auction

• Allocation Algorithm: Give the object to the player with the highest bid.

• Payment Scheme: The winner pays an amount equal to the second highest bid.

• Proposition (Vickrey 1961): For every v1 ,…, vn and every v’i, let ui be the utility if he bids vi and u’i his utility if he bids v’i. Then, ui ≥ u’i.

Incentive Compatible Mechanisms(激励相容)

• A mechanism (f, p1,…,pn) is incentive compatible (or strategy proof) if for every player i, every v=(v1,…,vn) and every v’i vi(f(vi,v-i))-pi(vi,v-i) ≥ vi(f(v’i,v-i))-pi(v’i,v-i)

• Example:

f(vi,v-i)=a	f(v’i,v-i)=b
pi(vi,v-i)=3	pi(v’i,v-i)=5
vi(f(vi,v-i))=vi(a)=6	vi(f(v’i,v-i))=vi(b)=7
vi(f(vi,v-i))-p(vi,v-i)=3	vi(f(v’i,v-i))-p(v’i,v-i)=2

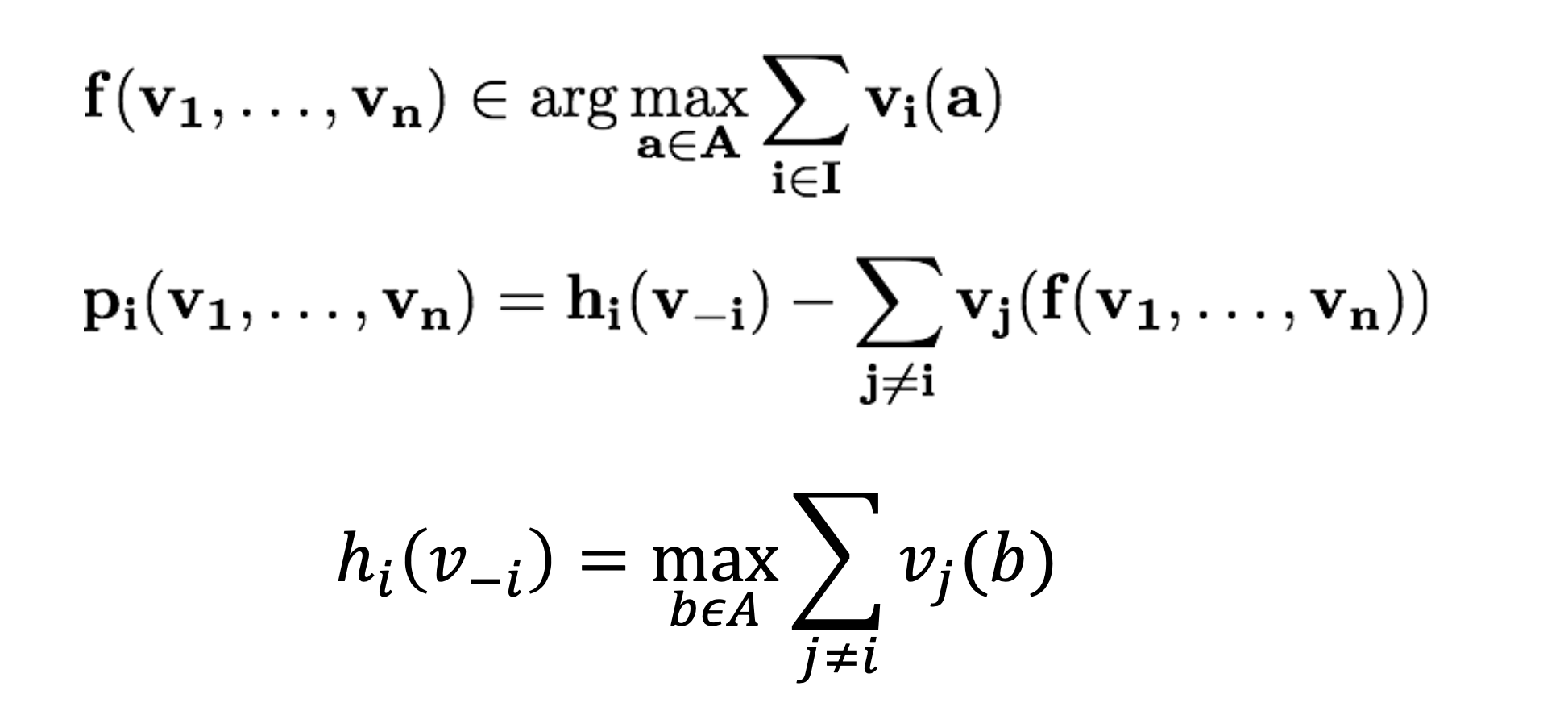

VCG Mechanisms(!important)

• A mechanism (f,p1,…,pn) is called VCG mechanism if



• Theorem:

  1. A VCG mechanism with Clarke pivot payments makes no positive transfers.

  2. If vi(a) ≥ 0 for every vi and alternative a then it is also individually rational.

• VCG Applications

  1. Multiunit Auctions

     • Allocation Algorithm: Give the k objects to the k highest bidders.

     • Payment Scheme: The winners pay an amount equal to the k+1st highest bid.

  2. Path Auctions

Characterizations of Incentive Compatible Mechanisms

• Proposition: A mechanism is incentive compatible if and only if it satisfies the following conditions for every i and every v−i :

  1. The payment pi does not depend on vi , but only on the alternative chosen f(vi, v−i ).

  2. The mechanism optimizes for each player.

Weak Monotonicity

• A social choice function f satisfies Weak Monotonicity (WMON) if for all i, all v−i we have that f(vi, v−i) = a ≠ b = f (v′i, v−i) implies that vi(a) − vi(b) ≥ v′i(a) − v′i(b).

Affine Maximizers

• 带权和附加 cost 的 VCG

• Theorem (Roberts) If |A| ≥ 3, f is onto A, Vi = R|A| for every i, and (f, p1, . . . , pn) is incentive compatible then f is an affine maximizer.

• Theorem (Gibbard-Satterthwaite): If |A|≥3 and f is strategy-proof and onto, then f is a dictatorial social choice function.

Mechanisms without Money

• Single-Peaked Preferences

  1. Each player’s preference has a single most preferred point in an interval.

  2. The preferences are decreasing as one moves away from that peak.

• Dictatorship: Player 1 is a dictator if f(b1,b2)=b1

• Leftmost: Assign the facility to the leftmost bid.

• Rightmost: Assign the facility to the rightmost bid is strategyproof.

• k-th Leftmost: Assign the facility to the k-th leftmost bid is strategy proof.

• Fixed Point: Assign the facility to some fixed point.

Social Cost Minimization

• Assign the facility to the median: Is it strategyproof? Yes

Single-Peaked Preferences

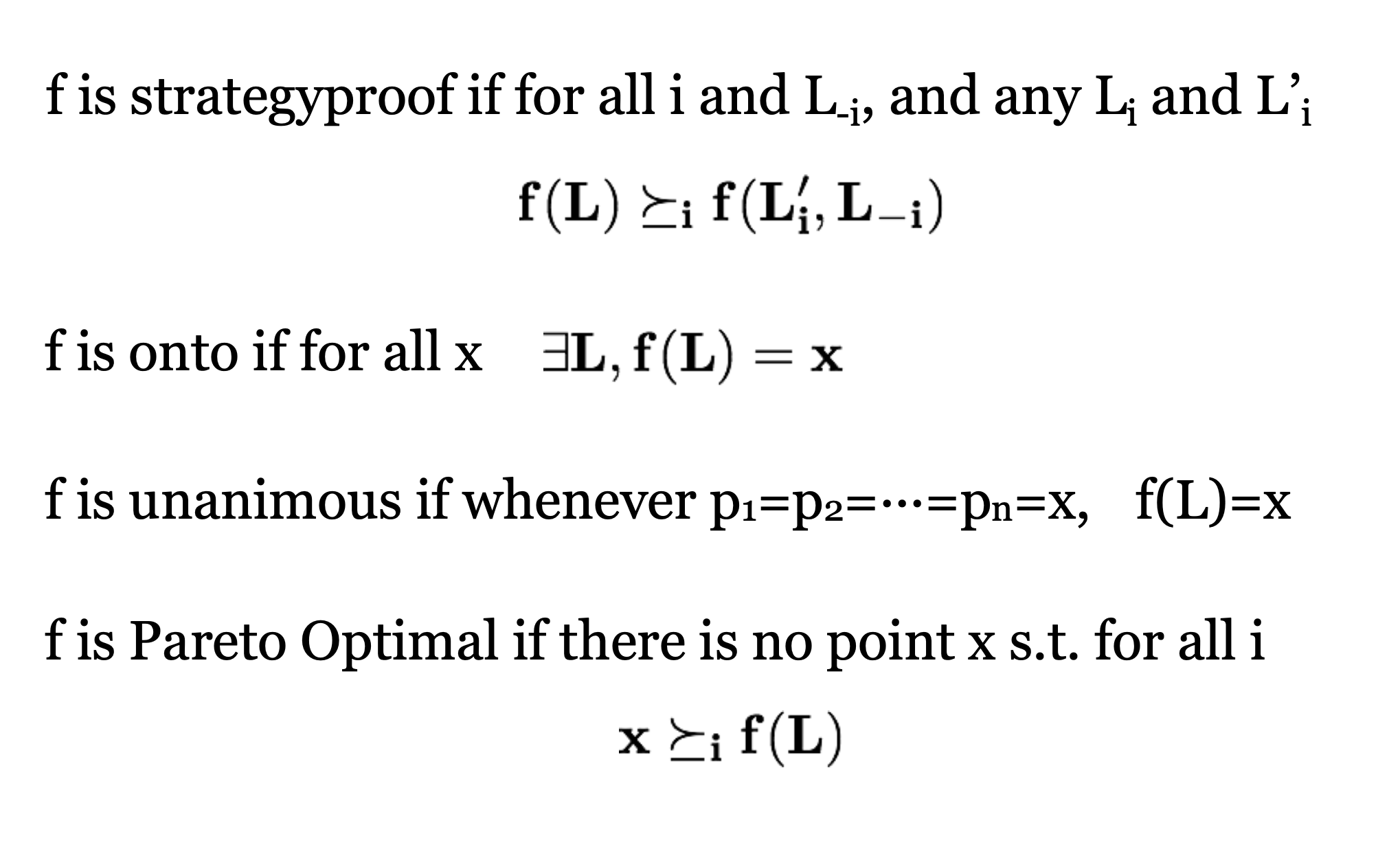

• Strategyproofness

• Onto:

• Unanimity: 一致性在社会选择理论中意味着，如果所有社会成员都对某个选项有相同的偏好，那么社会选择函数应该选择这个选项。例如，如果每个成员都认为选项 A 是最好的，那么一致的社会选择函数也应该选择 A。

• Pareto Optimality: f is Pareto Optimal if there is no point x >= f(L) 一个选择是帕累托最优的，如果没有其他选择能够使得至少一个人的福利更好而不损害其他人的福利。在社会选择的上下文中，一个社会选择函数生成的结果是帕累托最优的，意味着任何偏好配置下生成的选择结果都是帕累托最优的。

• Lemma: Suppose f is strategyproof. Then f is onto iff it is unanimous iff it is Pareto Optimal.

• Median:

  1. Theorem. A rule f is strategyproof, onto and anonymous iff there exist y1,…,yn-1 such that f(L)=med(p1,…,pn,y1,…,yn-1)

House Allocation Problem

• 1,…,n agents

• 1,…,n houses

• agent i owns the house i

• Allocation Requirements:

  • allocation: vector a=(a1 ,. . . , an).

  • ai is the number of the house assigned to agent i.

  • For an allocation to be feasible, we require that ai ≠aj ,foralli≠j.

  • If a is the initial allocation then ai = i.

• Top Trading Cycle Algorithm:

Round i

1. Construct a directed graph using one vertex for each agent: If house j’ is agent j’s top preference ranked choice, insert a directed edge from j to j’. (An edge of the form (j, j) will be called a loop.)

2. Identify all directed cycles and loops.

3. Let Ni be the set of vertices (agents) incident to these cycles. Supposei1 →i2 →i3 →°°°→ir →i1 is one such cycle. Give house i1 to agent ir , house ir to agent ir−1, and so on.

4. Let N N\Ni . While non empty, repeat.

• Theorem: The core of the house allocation problem consists of exactly one matching.

• Theorem: The TTC mechanism is strategy-proof.

Stable Matching

• A matching is called unstable if there are two men m,m′ and two women w, w′ such that

  (i) m is matched to w,

  (ii) m′ is matched to w′, and

  (iii)w′ ≻m w and m ≻w′ m′

• A matching that has no blocking pairs is called stable.

Gale-Shapley Algorithm

• Round 1

  Step 1: each man proposes to his top-ranked choice

  Step 2: each woman who has received at least two proposals keeps (tentatively) her top- ranked proposal and rejects the rest.

• Round 2

  Step 1: each man who has been rejected proposes to his top-ranked choice among the women who have not rejected him. (每个被拒绝的男人都会向没有拒绝过他的女人中排名最高的)

  Step 2: each woman who has at least two proposals (including ones from previous rounds) keeps her top-ranked proposal and rejects the rest.

• Repeat until each woman has at most one proposal.

• Example



• At most n^2 rounds!

• Theorem. The Gale-Shapley algorithm (Deferred Acceptance Algorithm) terminates in a stable matching.

(Fe)male optimal matching

• Theorem. The stable matching produced by the (male-proposal) Gale-Shapley algorithm (Deferred Acceptance Algorithm) is male-optimal.

• Theorem. The direct mechanism associated with the male proposal Gale-Shapley algorithm is strategy-proof for the males.

Combinatorial Auctions

• Problem Statement:

  1. A set M of m indivisible items M={1,…,m}

  2. A set N of n bidders N={1,…,n}

  3. Bidders have preferences over subsets (bundles) of items A valuation is a real valued function for every subset S of items v(S) is the value the bidder obtains if he receives the bundle S

• Roberts Theorem: If |A| ≥ 3, f is onto A, Vi = RA for every i, and (f, p1, . . . , pn) is incentive compatible then f is an affine maximizer.

• Maximize Social Welfare

  • Maximize social welfare

  • Maximize revenue

  • Minimize envy

Single-Minded Bidders

• A valuation v is called single-minded if there exists a bundle of items S∗ and a value v∗ ∈ R+ such that v(S) = v∗ for all S ⊇ S∗, and v(S) = 0 for all other S.

• Proposition. The allocation problem among single-minded bidders is NP-hard.

• More precisely, the decision problem of whether the optimal allocation has social welfare of at least k (where k is an additional part of the input) is NP-complete.

• Approximation: S1,…,Sn is a c-approximation of the optimal one if for every other allocation T1,…,Tn

The Greedy Mechanism for Single- Minded Bidders (important)

• Theorem. The Greedy mechanism is efficiently computable, incentive compatible and produces a m1/2 approximation of the optimal social welfare.

• Monotonicity: A bidder who wins with bid (S∗i , v∗i) keeps winning for any v′i ≥v∗i andforanyS′i ⊆ S∗i

• Critical Payments: A bidder who wins pays the minimum value needed for winning: the infimum of all values v′i such that (S∗i , v′i ) still wins.

• Lemma. A mechanism for single-minded bidders, in which losers pay 0, is incentive compatible if and only if it is Monotone and uses Critical Payment.

Query Model

• The auctioneer presents a bundle S, the bidder reports his value v(S) for this bundle.

(DNS) Mechanism for SA valuations (important)

• Algorithm:

  • For each bidder i=1,…, n do:

    1. Query bidder i for the set M={1,…,m}
    2. For each item j=1,…,m do: Query bidder i for the item j

  • Construct a bipartite graph G=(N,M,E)

    1. a vertex bi for every player i
    2. a vertex aj for every item j
    3. E=(bi,aj)
    4. w(bi,aj)=vi(j)

  • Compute a maximum weighted matching P of G

  • Find the bidder i*∈ arg maxi vi(M)

  • Return the assignment with maximum S.W. among iii) and iv)

• Theorem. The DNS mechanism is efficiently computable, incentive compatible and produces a O(m1/2) approximation of the optimal social welfare for subadditive valuations.

Submodular Valuations

Item Bidding Auctions

• Each item is sold in a single-item auction.

  • First price item-bidding auction

  • Second price item-bidding auction

  • All-pay item-bidding auction

Profit Maximization

Myerson’s Optimal Mechanism

• MyeF(b):

  (i) Given the bids b and F, compute “virtual bids”: b′i = φi(bi).

  (ii) Run VCG on the virtual bids b′ to get x′ and p′

  (iii) Output x = x′ and p with pi = φ−1i (p′i) (upon winning).
