Elements of Cryptography. Symmetric Encryption.

Cryptography

• Cryptography is a collection of mathematical techniques for protecting information;

• Most important cryptographic technique is encryption/decryption

Cryptography for information protection

Level	What to protect	Method
3	Existence of message	Steganography
2	Metadata of message	Privacy-enhancing technologies
1	Content of message	Encryption
0	Nothing	None

Encryption is important for all levels.

Two categories of encryption algorithms

• Symmetric encryption (对称加密) (or symmetric key encryption):
  • to encrypt and decrypt a message the same key (a piece of information; sequence of bits) is used
• Asymmetric encryption (非对称加密) (or asymmetric key encryption):
  • One key is used for encryption (usually publicly known, public key);
  • Another key is used for decryption (usually private, or secret key)

Components of Symmetric Encryption

• Plaintext
• Encryption algorithm
• Secret key
• Ciphertext (encrypted text) • Decryption algorithm

Security of symmetric encryption

• security of symmetric encryption depends on

  • the secrecy of the key,
  • Not the secrecy of the algorithm

• Strong encryption algorithm:

  • The adversary (opponent) should be unable to decrypt encrypted text, even if he/she knows several pairs (plaintext, encrypted plaintext)

• Sender and receiver must have obtained copies of the secret key in a secure way and must keep the key secure

Two more classifications of cryptosystems

• Type of operations used

  • Substitutions;
  • Transpositions;

• The way in which plaintext is processed

  • Block cipher: input block of elements (e.g. characters) is transformed to the output block at once;
  • Stream cipher: processes the input elements continuously, one element at a time.

// interleaving substitutions （交叉替换）

Cryptanalysis and computationally secure schemes

• Cryptanalysis: The process of attempting to discover the plaintext or key;

• Depends very much on the information available;

• An encryption scheme is computationally secure if

  • The cost of breaking the scheme exceeds the value of the encrypted information;
  • The time required to break the scheme is more than lifetime of the information;

Brute-Force Approach in Cryptanalysis

// brute-force （暴力破解）

• If nothing else helps and there is no weakness in the encryption algorithms, brute-force approach may be applied;
• Try every possible key until correct translation of the encrypted text into plaintext is obtained;
• Possible issue: how does cryptanalyst recognize correct plaintext? Imagine it has been compressed before encryption;
• Main issue: time

Block vs stream ciphers

• The way in which plaintext is processed
  • Block cipher: input block of elements is transformed to the output block at once.
  • Stream cipher: processes the input elements continuously, one element at a time.

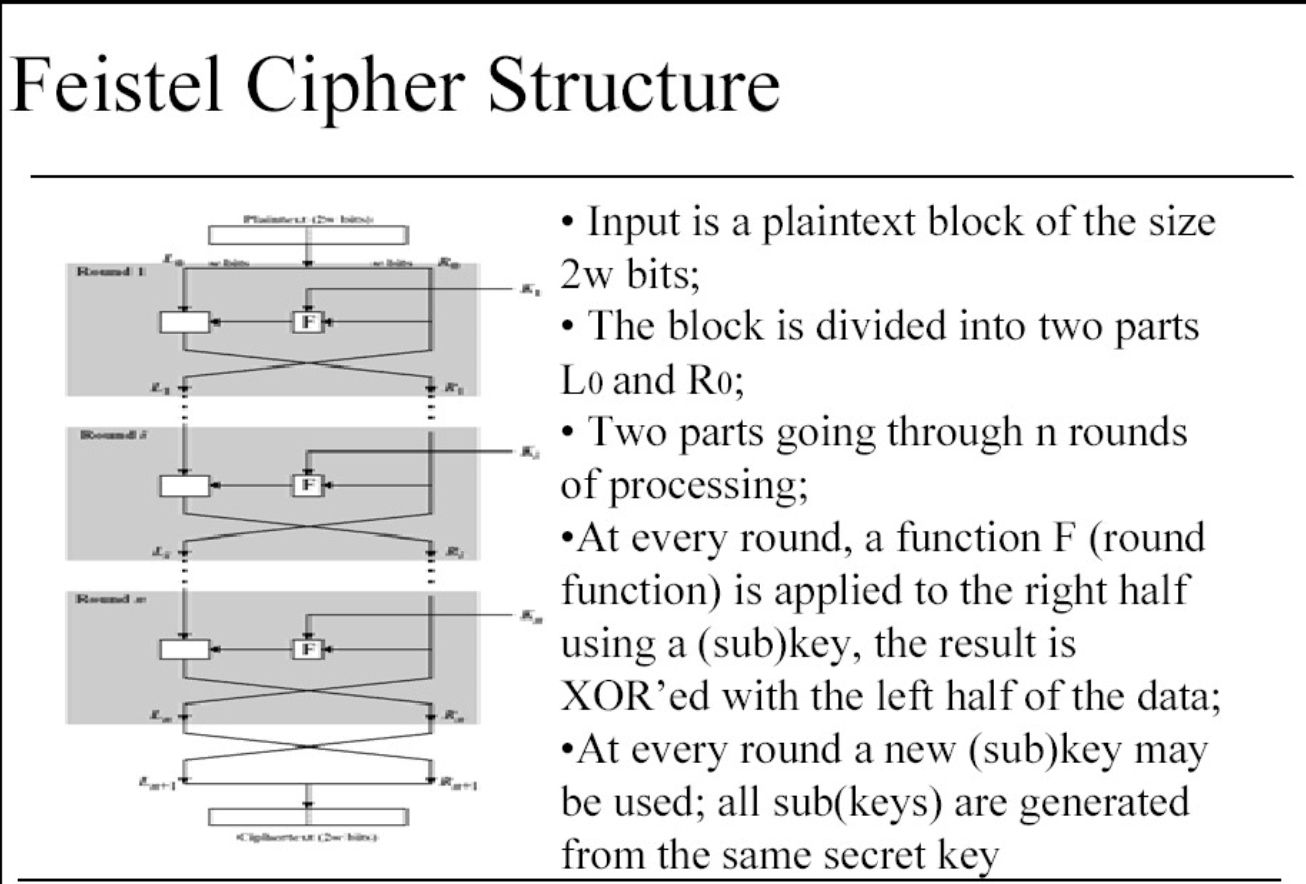

Feistel cipher structure

• Most symmetric block encruption algorithms have a structure proposed by H.Feistel in 1973.
• The input is divided into the blocks of even numbers of elements.
• Then multiple stages of substitutions and transpositions is applied.
• Multiple keys are used at different rounds of the algorithm.

Symmetric Encryption Algorithms

Most important symmetric block ciphers

• DES (Data Encryption Standard)
• 3DES (triple DES)
• AES (Advenced Encryption Standard)

Advanced Encryption Standard

• Design uses theory of finite fields, a branch of algebra;
• Every block of 128 bits is presented as 4 by 4 array of bytes
• Key Expansion: Key -> Round keys

Steps in AES processing

• Substituiton: each byte is replaced with another based on lookup table
• ShiftRows: each row is shifted cyclically certain amount of step
• MixColumns: mixing operation on the columns (defined in terms of computations in a finite field).
• AddRoundKey- each byte is combined with the round key

Security of AES

• Considered secure for use for classified information, secret and top secret level;
• However, there are some concerns related to the algebraic foundations of algorithm – underlying algebraic structure might be used in the attacks in some clever way;
• The above is for Black Box setting; rather efficient Side Channels attacks have been discovered recently

Block ciphers modes

Block ciphers may be used in different modes. Most common modes are:

• Electronic Codebook Mode (ECB)
• Cipher Block Chaining (CBC)
• Cipher Feedback Mode (CFB)

Electronic Codebook Mode (ECB)

• Simple mode: each block, say of size 64 bits is encrypted with the same key;
• For a given block of the plaintext and a given key the result of encryption is unique;
• If a block of plaintext is repeated several times, the result of encryption contains several copies of the same ciphertext;
• So, the encryption of the lengthy (regular) messages might be insecure.

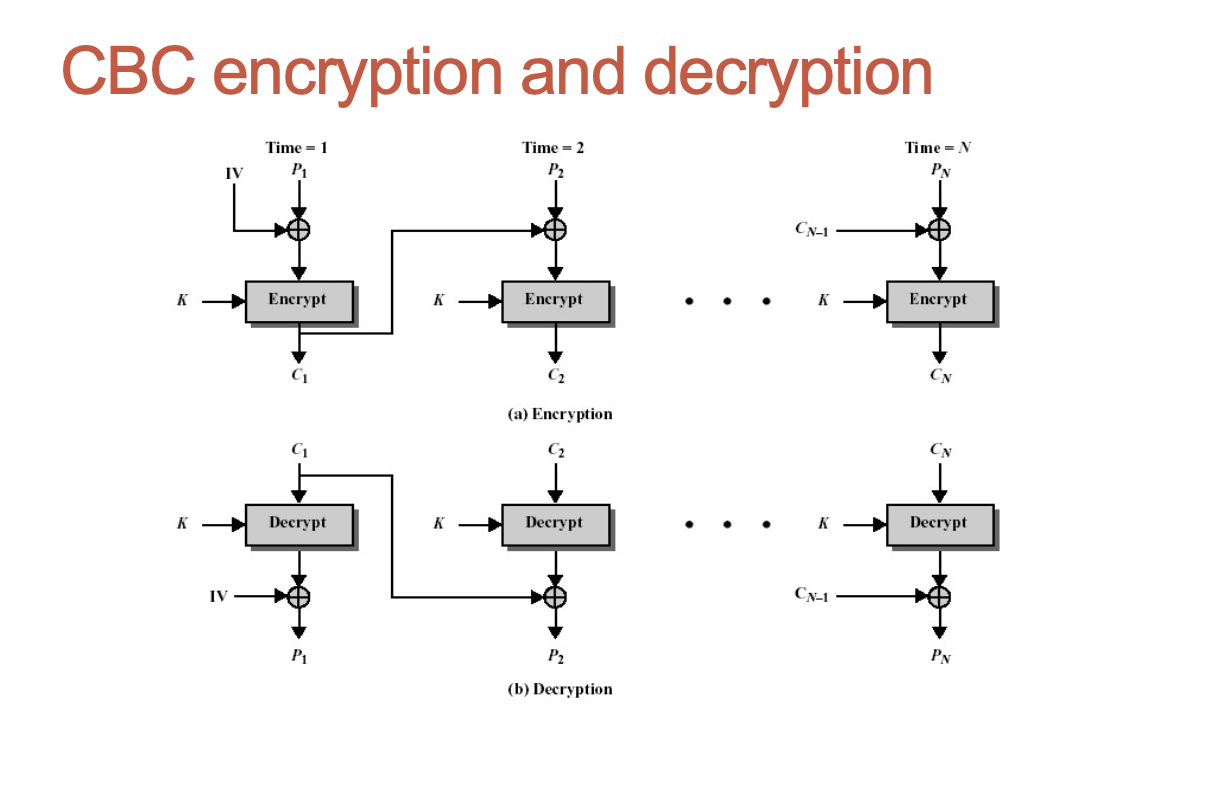

Cipher Block Chaining Mode (CBC)

• CBC mode fixes abovementioned disadvantage of ECB mode: here the same blocks of plaintext may produce different blocks of ciphertext;
• Simple idea: before encryption a block of the plaintext is XOR’ed with the result of encryption of the previous block;
• For the first block encryption some initialisation vector (IV) is used;
• It is better to keep both a key and IV secret.

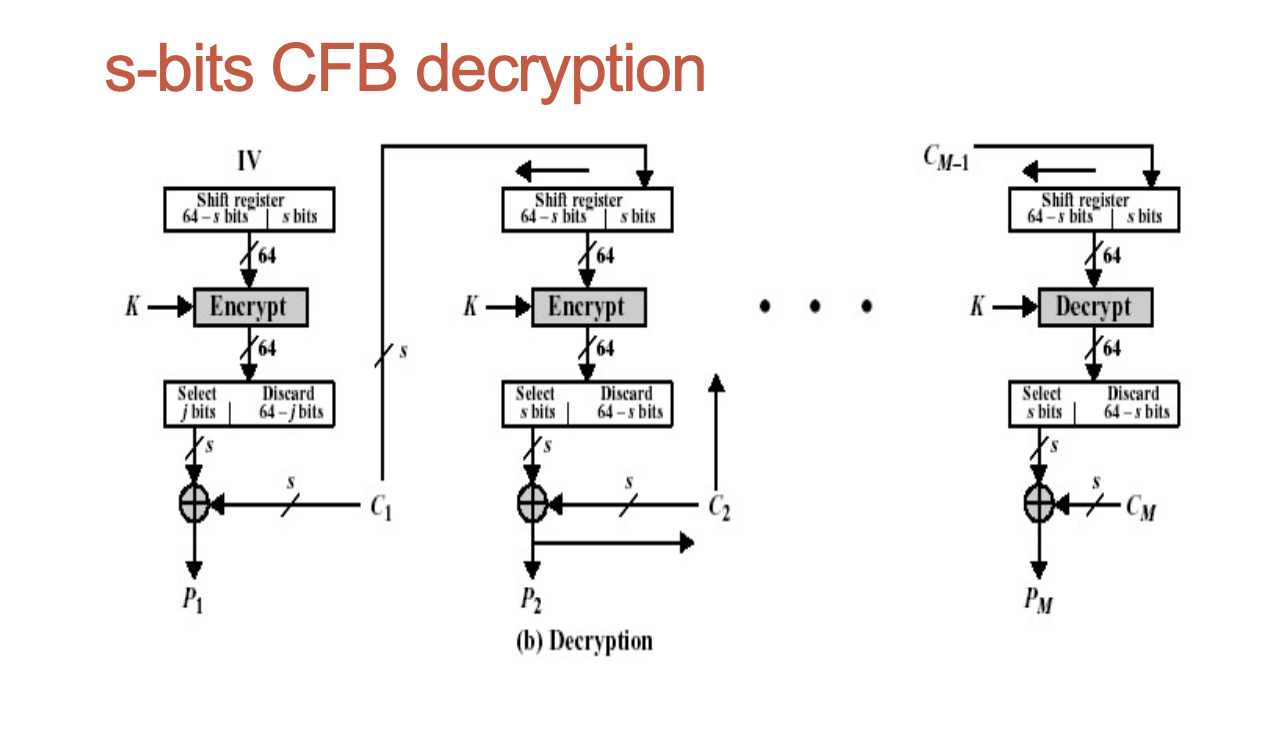

Cipher Feedback Mode (CFB)

• CFB mode may be used to transform a block cipher to the stream cipher;
• It has a parameter s (the size of transmission unit); if 8-bit characters are used as transmission unit, then s = 8;
• Shift register of the size equal to the size of the block of the block cipher is used (typically it is 64 bits);
• Again, an initialisation vector is needed.

Key distribution

• From requirements for symmetric encryption:

• “Sender and receiver must have obtained copies of the secret key in a secure way and must keep the key secure”

• Important issue: how to distribute secret keys?

Manual delivery

For two parties A and B:

• A key could be created by A and delivered physically to B (or vice versa);
• A key could be created by the third trusted party C and delivered physically to A and B;
• Difficult to use in wide area distributed systems, when dynamic connections are needed.

Further techniques

• If A and B have used recently a secret key, one of them could create a new secret key and send it to the partner using old key;
• Potential problem: once an attacker learned one key, he can disclose all keys afterwards

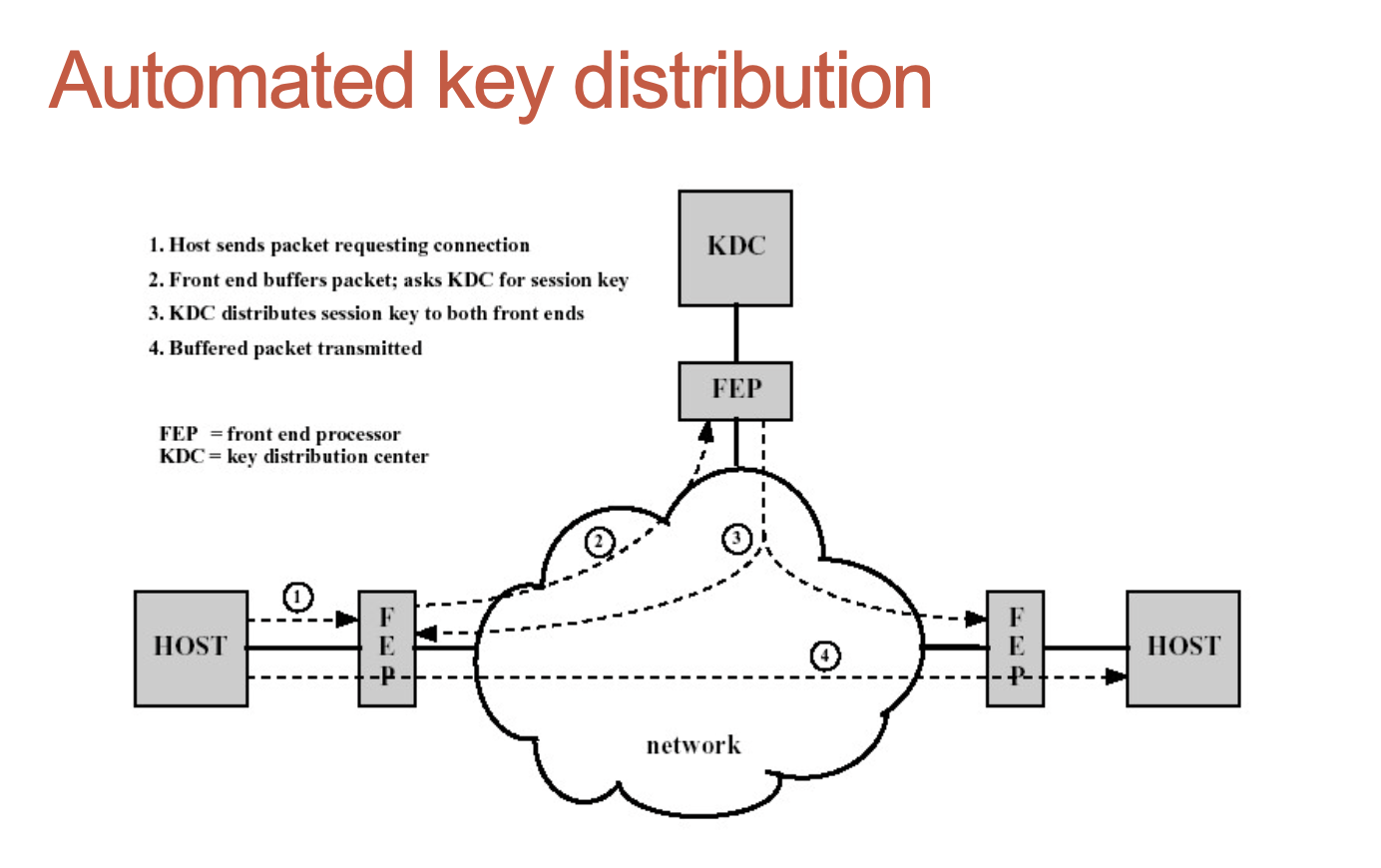

• There is a third trusted party C connected by encrypted channels with both A and B. Then C creates a key and distributes it among A and B using encrypted channels;
